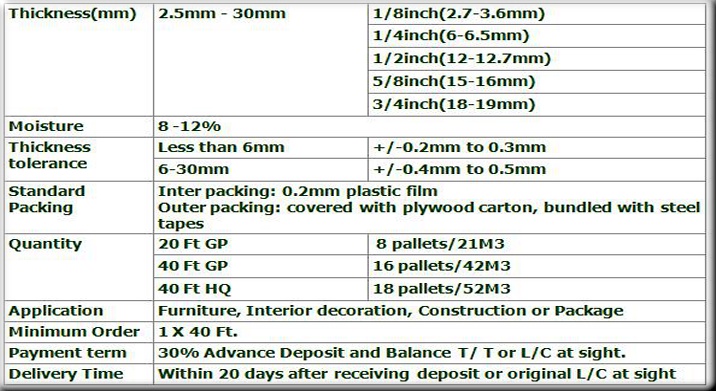

Commercial Plywood Product Specification
1) Size: 1220 X 2440mm, 910 X 1820mm,1250 X 2500mm, or as per request
2) Grade : B/BB , BB/CC / C/CC.
3) Thickness: 2.5mm - 30mm
4) Glue: E0, E1, E2, Melamine, WBP .
5) Face & Back Veneer : Okuome / Bintangor / Meranti / Birch / Pine / Keruing / Pencil Cedar And Both sides Sanded.
6) Core Veneer: Poplar, Eucalyptus, Hardwood, Birch, Combi Core or as requested etc.
7) Surface Veneer: Peeling 0.15mm - 0.25mm
8) Surface Veneer Grade: In accordance with the Chinese national standard GB/T 17657-1999 and the American national standard ANSI/HPVA-1-2004
1) Size: 1220 X 2440mm, 910 X 1820mm,1250 X 2500mm, or as per request
2) Grade : B/BB , BB/CC / C/CC.
3) Thickness: 2.5mm - 30mm
4) Glue: E0, E1, E2, Melamine, WBP .
5) Face & Back Veneer : Okuome / Bintangor / Meranti / Birch / Pine / Keruing / Pencil Cedar And Both sides Sanded.
6) Core Veneer: Poplar, Eucalyptus, Hardwood, Birch, Combi Core or as requested etc.
7) Surface Veneer: Peeling 0.15mm - 0.25mm
8) Surface Veneer Grade: In accordance with the Chinese national standard GB/T 17657-1999 and the American national standard ANSI/HPVA-1-2004
PRODUCTS SPECIFICATION
BlockBoard Specification
1) Size: 1220x2440mm
2) Thickness: 12mm, 15mm, 18mm
3) Grade : B/BB , BB/CC / C/CC.
4) Glue: E0, E1, E2, Melamine, WBP
5) Surface: ( Natural and EV veneer; Quarter cut and Flat cut ): 4) Face & Back Veneer : Red Oak, White oak, Red Birch, White Birch, Beech, Okoume, Cherry, Walnut, Sapele, Teak, Poplar, Makore etc.
6) Core Veneer : Poplar, Pine, Fir, Abazia and Paulownia.
Film Faced Plywood Specification
1) Size: 1220*2440/1250*2500mm
2) Thickness: 4 -40MM
3) Glue: MR, WBP and Melamine
4) Core: poplar, birch, hardwood etc
5) Core size: 84*127cm
6) Black / Brown Film Faced
7) Imported Film Surface : Black / Brown Film Faced, 120g or 240g / M2 ; MC : 8-12%.
9) Anti-slip film-faced plywood
Glue: WBP Surface: imported film, 165g /m2; MC : 8-12%.
MDF Board Specification
1) Sizes : 1220*2440mm,1830*2440mm,1830X2745mm,1550x2745.
2) Thickness : 2.0 - 30mm
3) Density : 720~750KG/M3
4) Density Warp : -7.0% - + 7.0%
5) Color : Wooden Color
6) Glue : E1 , E2
7) Grade : AAA , AA
8) Moisture Content : 4-9 %
9) Expansion Ratio : Below -10%
10) Internal Bond Strength : > -0.55Mpa
11) Bending Strength ( Modulus of Rupture) : > 25.0 Mpa
12) Modulus of Elasticity : > 2200Mpa
13) Screw Holding ( Surface ) : > 1000N
14) Screw Holding ( Edge) : > 800
Chip Board Specification
1) Sizes : 1220X2440mm,1830 X 2440mm,1830 X 2745mm,1550 X 2745.
2) Thickness : 2. 0--30mm
3) Density : 720~750KG/M3
4) Density Warp : -7.0% - + 7.0%
5) Color : Wooden Color
6) Glue : E1 , E2
7) Grade : AAA, AA
8) Moisture Content : 4-9 %
9) Expansion ratio : -----below 10%
10) Internal Bond Strength : > -0.55Mpa
11) Bending Strength ( Modulus of Rupture) : > 25.0Mpa
12) Modulus of Elasticity : > 2200Mpa
13) Screw Holding ( Surface) : > 1000N
14) Screw Holding ( Edge) : > 800
BlockBoard Specification
1) Size: 1220x2440mm
2) Thickness: 12mm, 15mm, 18mm
3) Grade : B/BB , BB/CC / C/CC.
4) Glue: E0, E1, E2, Melamine, WBP
5) Surface: ( Natural and EV veneer; Quarter cut and Flat cut ): 4) Face & Back Veneer : Red Oak, White oak, Red Birch, White Birch, Beech, Okoume, Cherry, Walnut, Sapele, Teak, Poplar, Makore etc.
6) Core Veneer : Poplar, Pine, Fir, Abazia and Paulownia.
Film Faced Plywood Specification
1) Size: 1220*2440/1250*2500mm
2) Thickness: 4 -40MM
3) Glue: MR, WBP and Melamine
4) Core: poplar, birch, hardwood etc
5) Core size: 84*127cm
6) Black / Brown Film Faced
7) Imported Film Surface : Black / Brown Film Faced, 120g or 240g / M2 ; MC : 8-12%.
9) Anti-slip film-faced plywood
Glue: WBP Surface: imported film, 165g /m2; MC : 8-12%.
MDF Board Specification
1) Sizes : 1220*2440mm,1830*2440mm,1830X2745mm,1550x2745.
2) Thickness : 2.0 - 30mm
3) Density : 720~750KG/M3
4) Density Warp : -7.0% - + 7.0%
5) Color : Wooden Color
6) Glue : E1 , E2
7) Grade : AAA , AA
8) Moisture Content : 4-9 %
9) Expansion Ratio : Below -10%
10) Internal Bond Strength : > -0.55Mpa
11) Bending Strength ( Modulus of Rupture) : > 25.0 Mpa
12) Modulus of Elasticity : > 2200Mpa
13) Screw Holding ( Surface ) : > 1000N
14) Screw Holding ( Edge) : > 800
Chip Board Specification
1) Sizes : 1220X2440mm,1830 X 2440mm,1830 X 2745mm,1550 X 2745.
2) Thickness : 2. 0--30mm
3) Density : 720~750KG/M3
4) Density Warp : -7.0% - + 7.0%
5) Color : Wooden Color
6) Glue : E1 , E2
7) Grade : AAA, AA
8) Moisture Content : 4-9 %
9) Expansion ratio : -----below 10%
10) Internal Bond Strength : > -0.55Mpa
11) Bending Strength ( Modulus of Rupture) : > 25.0Mpa
12) Modulus of Elasticity : > 2200Mpa
13) Screw Holding ( Surface) : > 1000N
14) Screw Holding ( Edge) : > 800
